Guide Pin - Hardened Tool Steel
The guide pin is used to mount and locate PCBA on ICT Test Fixtures. Using an odd number of guide pins ensures the PCBA is mounted in the correct orientation and positioned precisely over the Test Probes. Our Guide Pins are made from hardened tool steel to ensure low wear and electroless nickel plated to reduce corrosion
The guide pin is used to mount and locate PCBA on ICT Test Fixtures. Using an odd number of guide pins ensures the PCBA is mounted in the correct orientation and positioned precisely over the Test Probes. Our Guide Pins are made from hardened tool steel to ensure low wear and electroless nickel plated to reduce corrosion
The guide pin is used to mount and locate PCBA on ICT Test Fixtures. Using an odd number of guide pins ensures the PCBA is mounted in the correct orientation and positioned precisely over the Test Probes. Our Guide Pins are made from hardened tool steel to ensure low wear and electroless nickel plated to reduce corrosion
Key Features

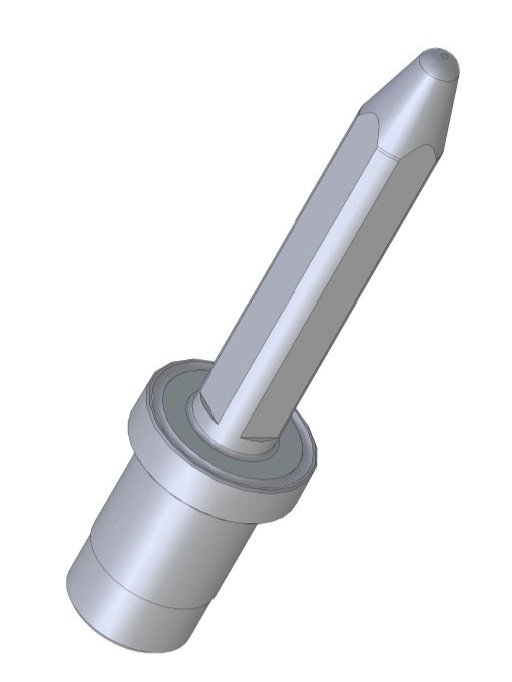

Four Point contact for ease of loading
Threaded mounting hole to secure pin to probe plate
Tapered profile to improve alignment of the PCBA under test
Typical Application
Accurately mounting PCB on to test fixture
Delivery: Stock items despatched within 1 to 2 days from date of Order
Non Stock Items despatched approximately 2 weeks from date of order
